Total Hip Instruments

Offset Reamer Driver

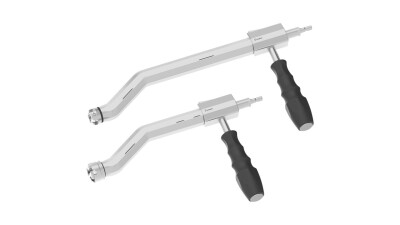

The Enztec Offset Reamer Driver (ORD) supports all surgical approaches including Direct Anterior Approach (DAA).

The Enztec ORD is available with two types of acetabular reamer connection: locking or open capture. The locking option allows reverse reaming if bone chips are to be compressed for defect filling in the acetabulum during bone grafting. The open option allows the user to (dis)connect the reamer driver to the acetabular reamer in situ.

Enquire now

Information Sheet

Technical Guide

Cleaning Instructions

Designed and manufactured with reliability in mind, the Enztec ORD is configurable to suit different reamer and power tool connections. This modularity facilitates intuitive assembly and disassembly for cleaning. Intra-operative handle adjustment of the Enztec ORD ensures optimum reaming position and force transmission, putting the control in your hands.

You can rely on the Enztec ORD to support minimally invasive techniques and give you superior visibility and control while reaming.

Two types of acetabular reamer connection: Locking or Open
- ORD Locking - Allows bone grafting while reverse reaming

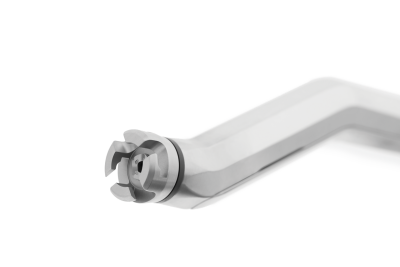

- ORD Open - Allows in-situ reamer capture
Available with Zimmer, Hudson, Harris and Large AO power coupling options
Intuitive assembly and simple disassembly for cleaning
Replacement parts readily available
Easy intraoperative adjustment of the handle

Materials: Stainless Steel, Silicone, PEEK
Weight: 925g / 2.0lbs
Dimensions:

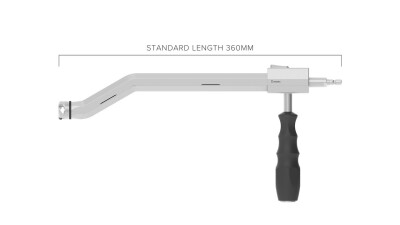

- Length: 360mm / 14.2in
- Offset: 35mm / 1.4in
Add your logo: available

Enztec is an MDR-certified, ISO13485 manufacturer

Reamers:
- Crossbar
- Bridgeback
Power connections:
- Hudson
- Zimmer
- Large AO
- Harris
